Description

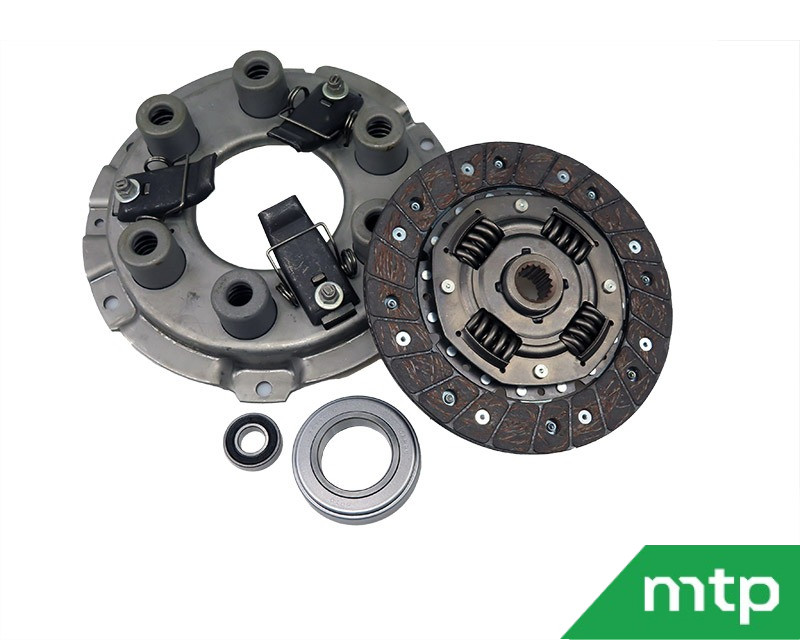

Clutch set Iseki TX
Buy a complete clutch kit for various Iseki TX tractors safely and quickly online at MTPParts.
The clutch set consists of:

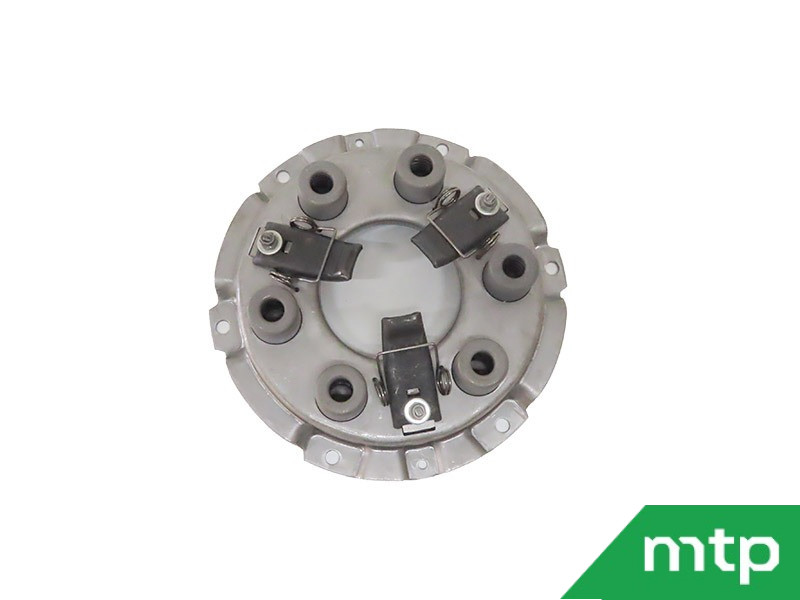

- Pressure group
Diameter overall: 24 mm
Inner diameter plate: 125 mm
Outer diameter plate: 185 mm

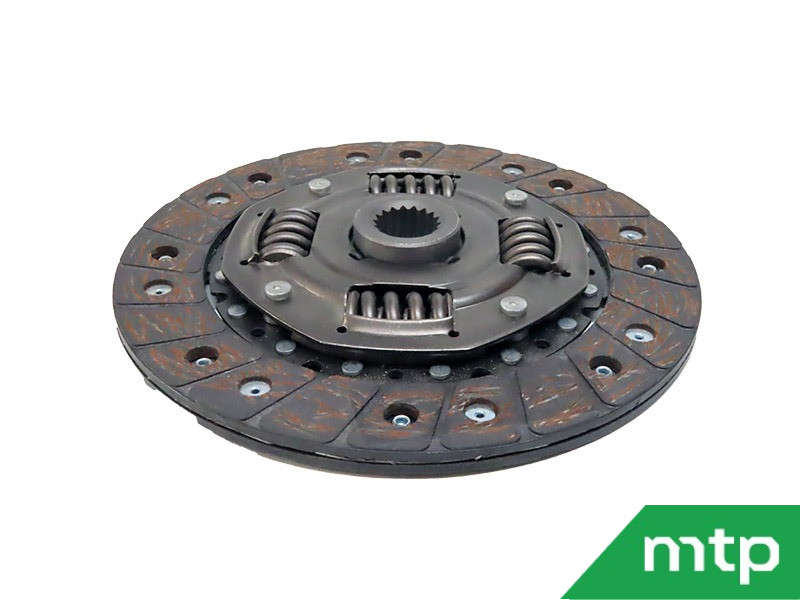

Height: 60 mm - Clutch plate
Total disc diameter: 180 mm
Shaft diameter measured between splines: 20.5 mm
Shaft diameter measured on splines: 18.5 mm
Number of splines: 18

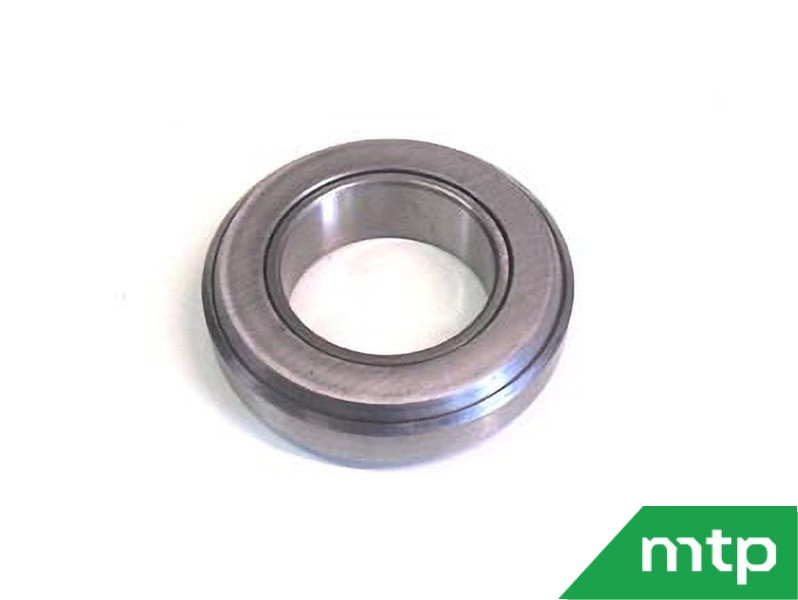

Shaft hole height: 21 mm - Thrust bearing
Diameter inside: 40 mm

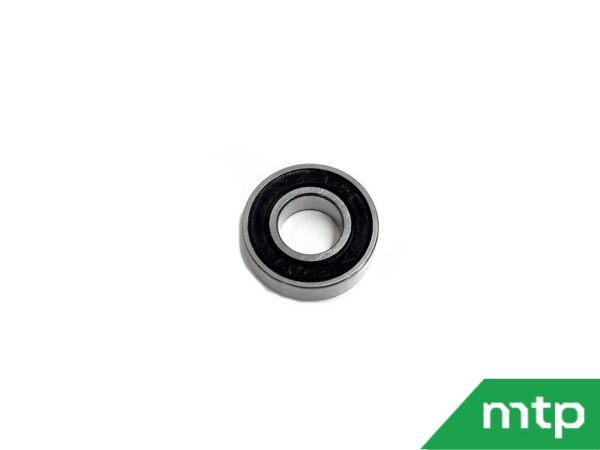

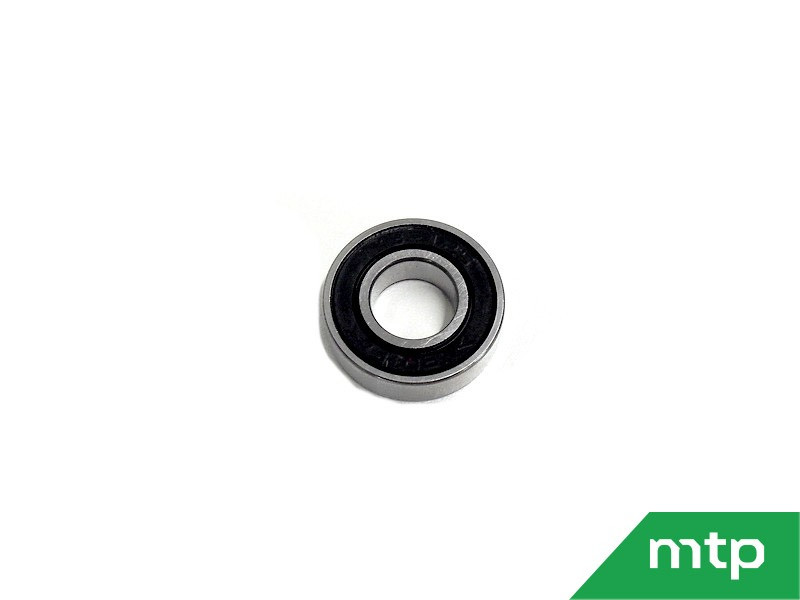

Diameter outside: 70 mm - Top bearing
Diameter outside 32 mm
Diameter inside 15 mm
The clutch kit Iseki TX is suitable for the following types:
- Iseki TX1000, TX1300, TX1500,
- Iseki TX1210, TX1410, TX1510
- Iseki TX2140, TX2160
Replace clutch set
When you are going to replace this clutch kit on your Iseki TX mini tractor, it is important to compare the type number of your tractor. The clutch kit Iseki is suitable for several Iseki TX mini tractors. At MTPParts we can also advise you which clutch set is best suited for your mini tractor. Please contact our mini tractor specialists for this. When you order a clutch kit from us before 12 noon, and it is in stock, it will be shipped the same day. In addition to parcel delivery, you can also pick up your order at our warehouse in Olst. We are open Monday through Friday for pickup of mini tractor parts from 8:30 am to 4:30 pm. Please make an appointment first via whatsapp 0630381824 or by email info@minitractorparts.nl, we will be happy to serve you.
Mtp-parts.com, your supplier for mini tractor parts!
MTPParts has a wide range of parts in the field of mini tractors, midi tractors, compact tractors and attachments. We sell these parts specializing in the Japanese mini tractor brands Yanmar, Iseki, Kubota and Shibaura.
Mtp-parts.com has a wide range of parts, including this clutch kit Iseki, for your Iseki TX 1000, TX 1300, TX 1500, TX 1210, TX 1410, TX 1510, TX 2140, TX 2160.
