Clutch set Kubota B
A complete clutch kit for various Kubota B tractors you buy safely and quickly online at Mtp-parts.com

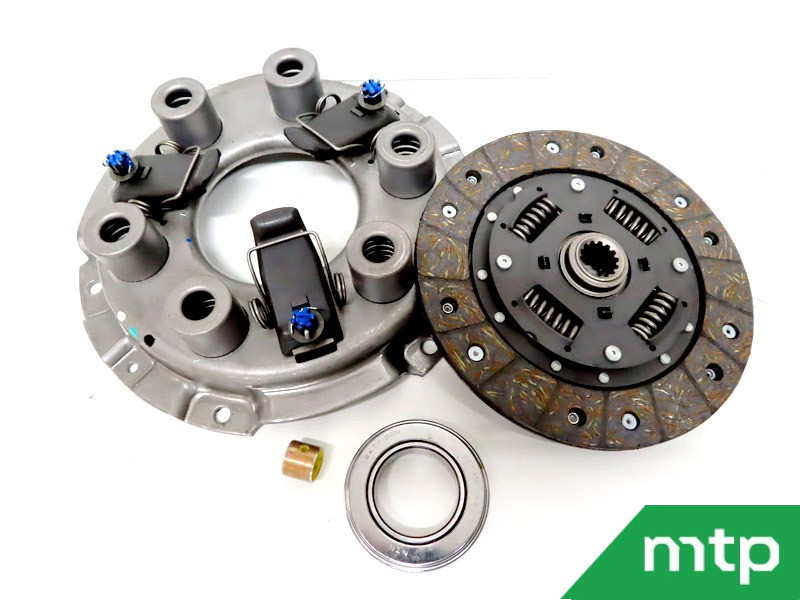

The clutch set consists of:

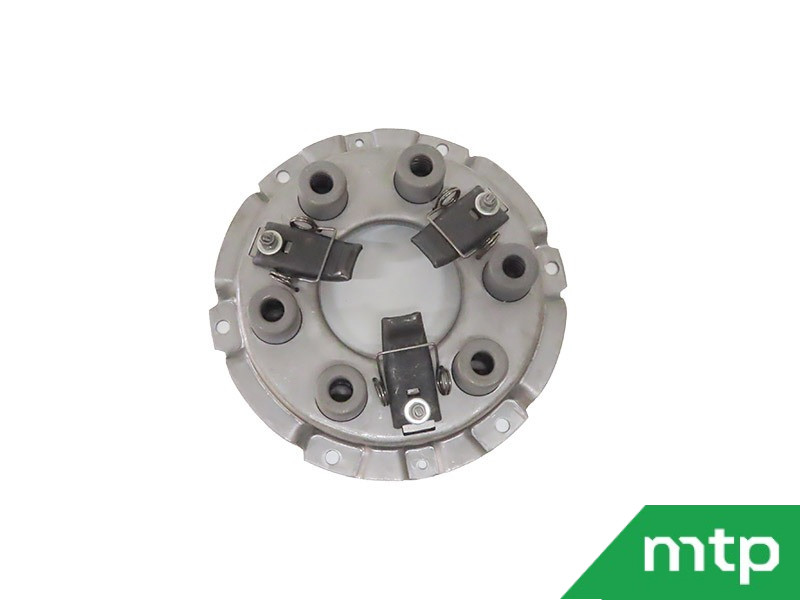

- Pressure group
Diameter overall: 24 mm
Inner diameter plate: 125 mm
Outer diameter plate: 185 mm

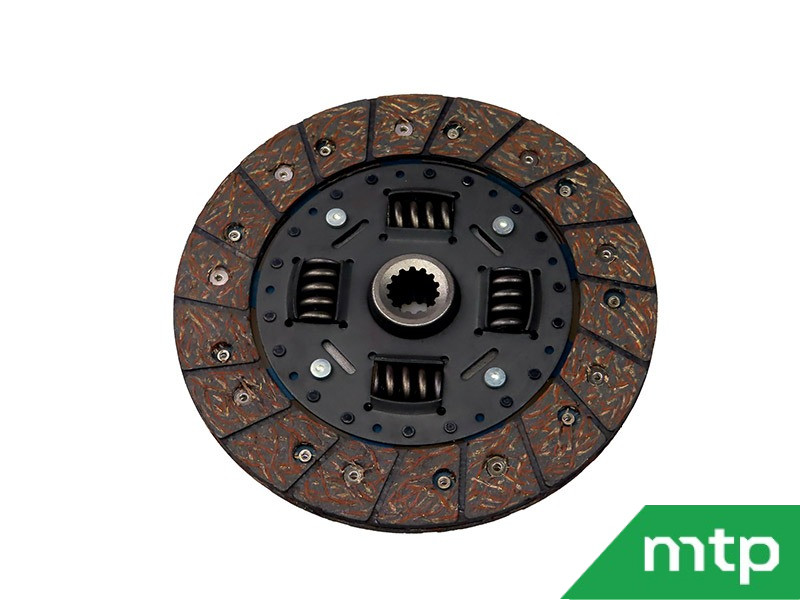

Height: 60 mm - Clutch plate
Diameter disc total: 185 mm
Shaft diameter measured between splines: 20 mm
Shaft diameter measured on splines: 17.5 mm
Number of splines: 14

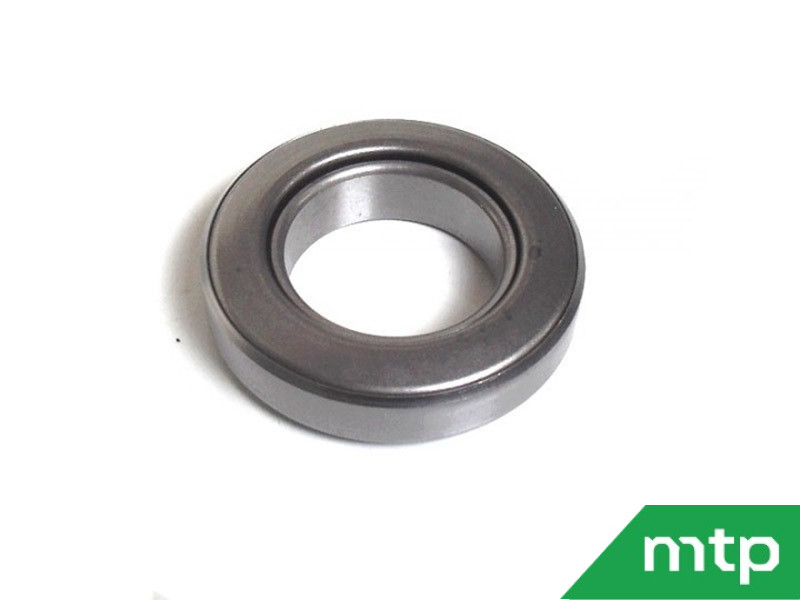

Height of shaft hole: 30 mm - Thrust bearing
Diameter inside: 38 mm
Diameter outside: 67 mm

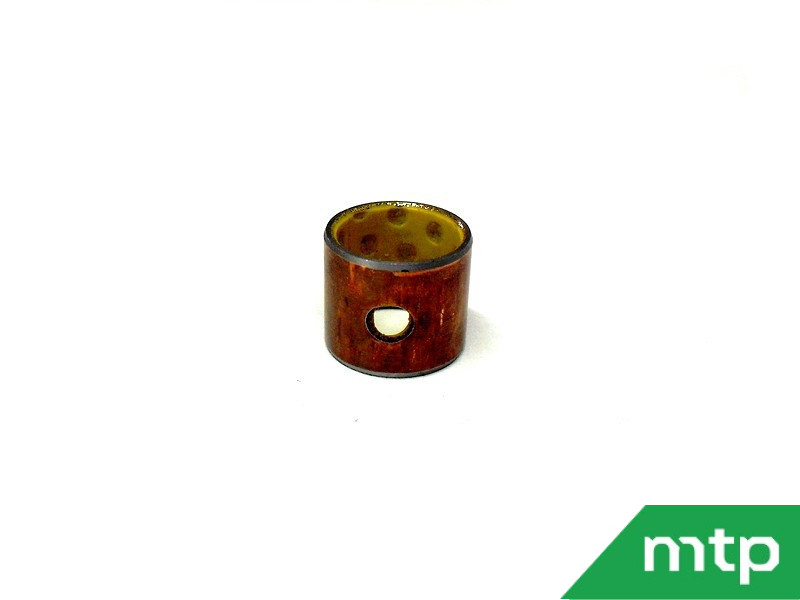

Thickness: 16 mm - Top bearing
Diameter outside: 17 mm
Diameter inside: 14 mm
Height: 15 mm
Our clutch kit Kubota B is suitable for:
- Kubota B5000, B5001, B6001
- Kubota B7000, B7001, B7100
Replace clutch set
When you are going to replace this clutch kit on your Kubota mini tractor, it is important to compare the type number of your tractor. The clutch set Kubota B is suitable for several Kubota B mini tractors. At MTPParts we can also advise you which clutch set is best suited for your mini tractor. Please contact our mini tractor specialists for this. When you order a clutch kit Kubota B from us before 12:00 noon, and it is in stock, it will be shipped the same day. Besides parcel delivery, you can also pick up your order at our warehouse in Olst. We are open Monday through Friday for pickup of mini tractor parts from 8:30 am to 4:30 pm. Please make an appointment first via whatsapp 0630381824 or by email info@minitractorparts.nl, we will be happy to serve you.
Mtp-parts.com, your supplier for mini tractor parts!
MTPParts has a wide range of parts in the field of mini tractors, midi tractors, compact tractors and attachments. We sell these parts specializing in the Japanese mini tractor brands Yanmar, Iseki, Kubota and Shibaura.
Mtp-parts.com has a wide range of parts, including this clutch kit, for your Kubota B 5000, B 5001, B 6001, B 7000, B 7001, B 7100.
Need other parts for your Kubota B mini tractor? Check out our full Kubota parts range.
