Description
Clutch set Shibaura
Buy a complete clutch kit for various Shibaura tractors safely and quickly online at MTPParts.

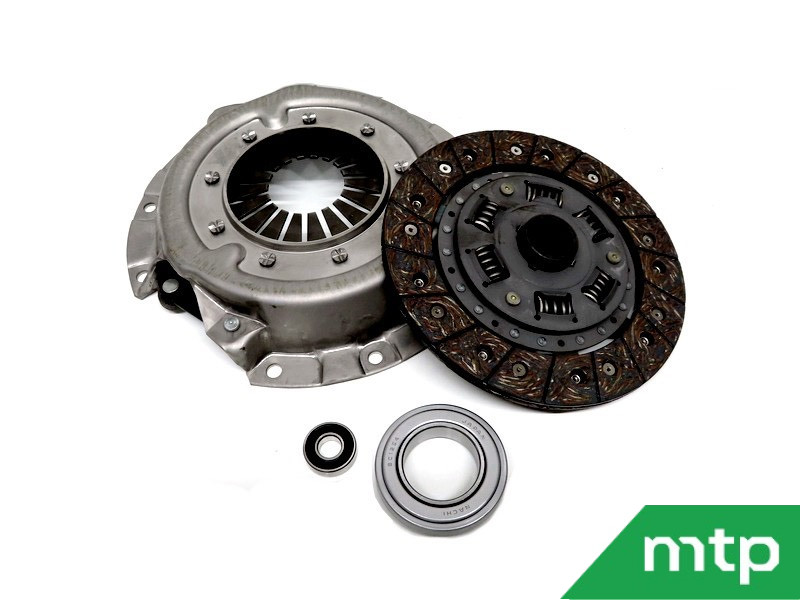

The clutch set consists of:

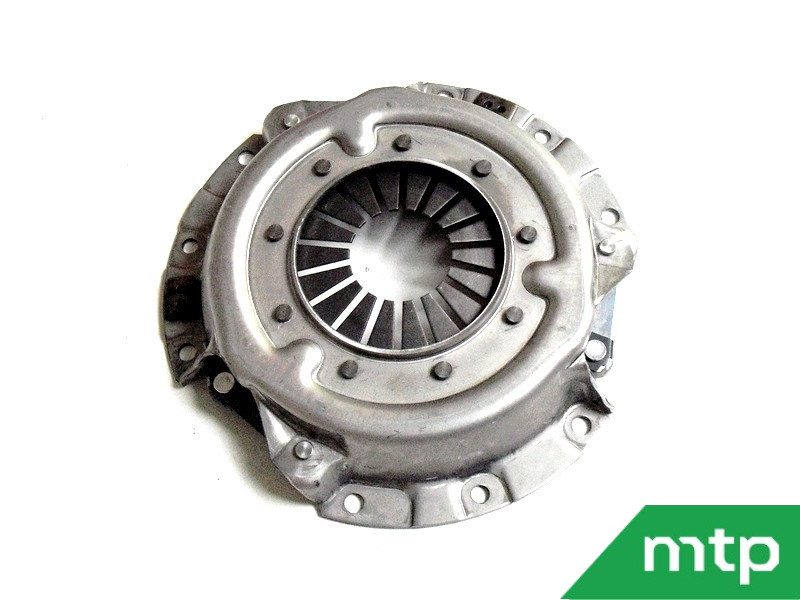

- Pressure group
Diameter overall: 240 mm
Inner diameter plate: 125 mm
Outer diameter plate: 185 mm

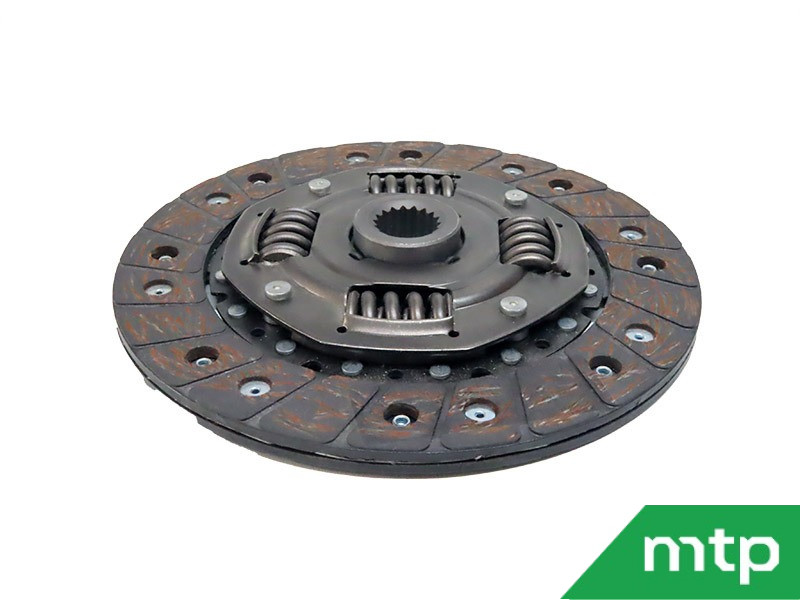

Height: 40 mm - Clutch plate
Total disc diameter: 180 mm
Shaft diameter measured between splines: 20.5 mm
Shaft diameter measured on splines: 18.5 mm
Number of splines: 18

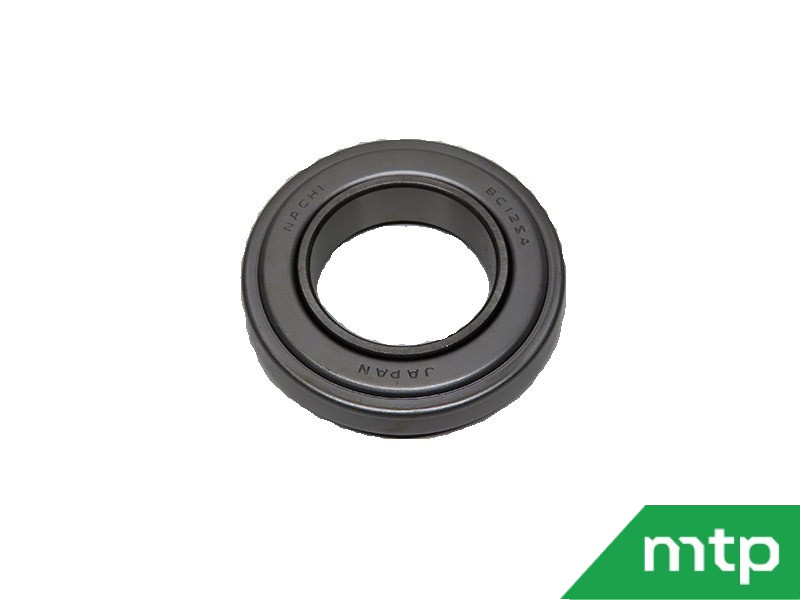

Shaft hole height: 21 mm - Thrust bearing
Diameter inside: 38 mm

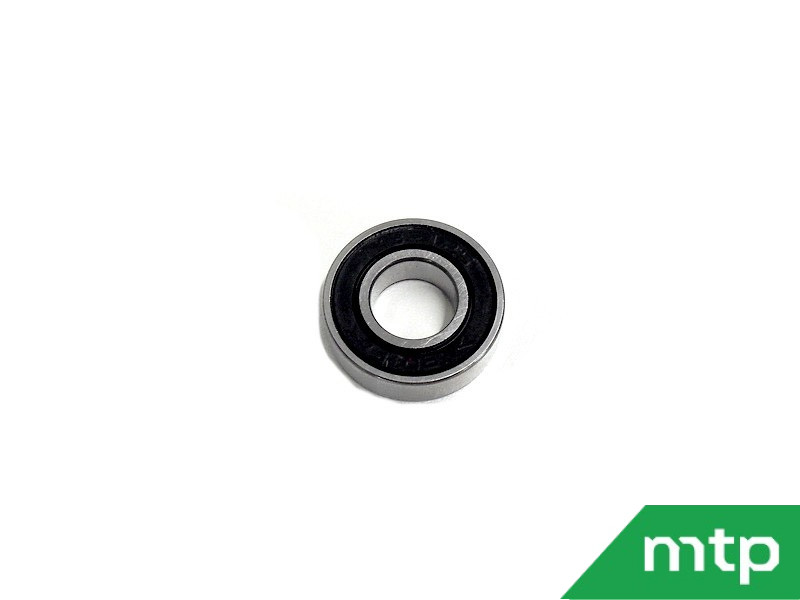

Diameter outside: 67 mm - Top bearing
Inner diameter: 12 mm
Outer diameter: 28 mm
Width: 8 mm
Our clutch kit Shibaura is suitable for the following types:
- Shibaura P15F, P17F
- Shibaura S318, S320
- Shibaura SP1440, SP1540, SP1740, SP1840, SP2140
Replace clutch set
When you are going to replace this clutch kit on your Shibaura mini tractor, it is important to compare the type number of your tractor. The clutch set Shibaura is suitable for several Shibaura mini tractors. At MTPParts we can also advise you which clutch set is best suited for your mini tractor. Please contact our mini tractor specialists for this. If you order a clutch kit Shibaura from us before 12:00 noon, and it is in stock, it will be shipped the same day. In addition to parcel delivery, you can also pick up your order at our warehouse in Olst. We are open Monday through Friday for pickup of mini tractor parts from 8:30 am to 4:30 pm. Please make an appointment first via whatsapp 0630381824 or by email info@minitractorparts.nl, we will be happy to serve you.
Mtp-parts.com, your supplier for mini tractor parts!
MTPParts has a wide range of parts in the field of mini tractors, midi tractors, compact tractors and attachments. We sell these parts specializing in the Japanese mini tractor brands Yanmar, Iseki, Kubota and Shibaura.
Mtp-parts.com has a wide range of parts, including this clutch kit, for your Shibaura P 15F, P 17F, Shibaura S 318, S 320, Shibaura SP 1440, SP 1540, SP 1740, SP 1840, SP 2140.
Need other parts for your Shibaura mini tractor? Check out our full Shibaura parts range.
