Description
Coupling package
You can buy a 20-piece torque kit safely and quickly online at MTPParts.

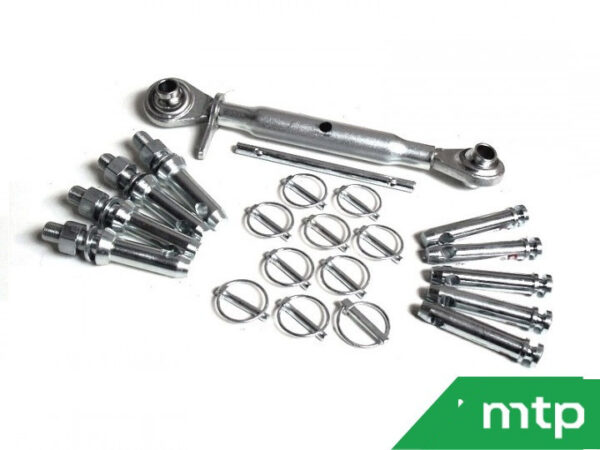

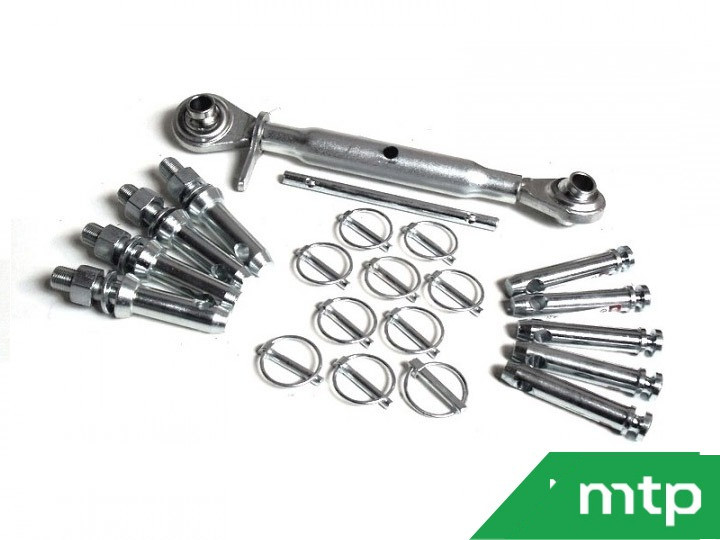

A torque package consists of:
- 1 cat.1 top bar
- 5 cat.1 top rod pins
- 4 cat.1 implement pins
- 10 locking clips
Top bar category 1 (see Figure 2)
- A = M22
- B = 230 mm
- C = 19.4 mm
- D = 330 – 475 mm
Top rod pin category 1
- Pin length: 110 mm
- Pin diameter: 19 mm
- Diameter hole: 12 mm
Tool pin category 1
- Overall length: 137 mm
- Thread: 3/4″ UNF
- Length of wire: 48 mm
- Length of pin (to hole): 51 mm
- Pin diameter: 22 mm
Locking clip
- Pin diameter: 8 mm
