Description
Hydraulic top bar cat. 1 connection
Hydraulic top bar cat. 1 buy online safely and quickly at Mtpparts.

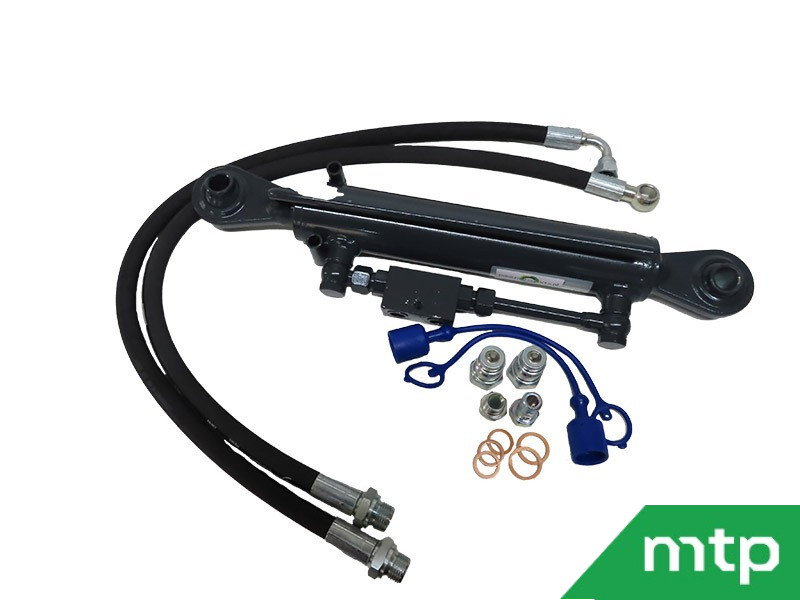

The hydraulic top link has a double-acting cylinder and an automatically operating manifold block with double-controlled check valve that keeps the cylinder sealed 100% leak-proof, even during prolonged heavy loading and/or leakage in the tractor.
The hydraulic top bar is supplied Including 2 hydraulic hoses with couplings.
Dimensions (see Figure 2)
Cat. A: 1 (19.2 mm)
Cat. B: 1 (19.2 mm)
Stroke C: 210 mm
Diameter piston rod D> 30 mm
Cylinder diameter inside E> 50 mm
F min: 460 mm
F max.: 670 mm
G> 44 mm
Lifting force: 3 tons
Traction force: 2 tons
Installation of hydraulic top bar
The hydraulic top bar is suitable for several brands and types of mini tractors. At Mtpparts, we can also advise you on how to fit this hydraulic top bar to your mini tractor. For this, contact our mini tractor specialists. When you order a hydraulic top bar from us before noon, and it is in stock, it will be shipped the same day. In addition to package delivery, you can also pick up your order at our warehouse in Olst. We are open Monday through Friday for pickup of mini tractor parts from 8:30 a.m. to 4:30 p.m. Please make an appointment first via whatsapp 0630381824 or by email info@mtpparts.nl, we will be happy to serve you.
