Tow bar with ball hitch

Description

Tow bar with ball hitch

The tow bar with ball hitch you buy safely and quickly online at MTPParts.

The hitch is universally suitable for various types of mini tractors

This versatile tow bar in combination with a pull pin connection, makes it possible to connect to both the trailer ball or e.g. a tipping trailer with eye connection.
The pull pin can be put through the eye and with the supplied locking device it is immediately secured. The hitch is very well built and of robust quality.

This ball head bolt coupling has a maximum tensile load of 3500 kg, and a maximum vertical tensile load of 350 kg.

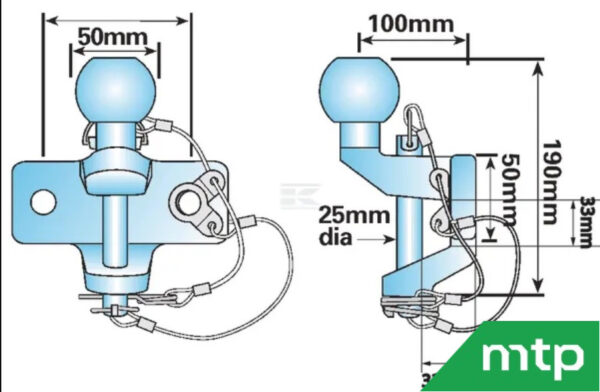

Dimensions:

• Distance between mounting holes 90 mm
• Diameter bolt attachment 16 mm
• Diameter of mounting holes 16.5 mm
• Diameter of pull pin 25 mm
• Ball head diameter 50 mm
• Overall height 190 mm
• See also image

Using tow bar with ball hitch

When you are going to replace the tow bar on your mini tractor, it is important to see if you can fit it to your tractor. The tow bar with ball hitch is suitable for various mini tractors. At MTPParts we can also advise you which tow bar is best suited for your mini tractor. Please contact our mini tractor specialists for this. If you order a tow bar with ball hitch from us before 12:00 noon, and it is in stock, it will be shipped the same day. In addition to parcel delivery, you can also pick up your order at our warehouse in Olst. We are open Monday through Friday for pickup of mini-tractor parts from 8:30 am to 4:30 pm. Please make an appointment first via whatsapp 0630381824 or by email info@minitractorparts.nl, we will be happy to serve you.
